Tiny solder-down module with NXP’s i.MX93 processor
27mm SoM offers low-power 64-bit solution for intelligent edge processing
QS93 is a 27mm x 27mm QFN Style solder-down system-on-module with NXP’s dual-core i.MX935 with ARM Cortex-A55 processors, plus RAM, Flash memory and power management, integrated on a QFN-footprint PCB with excellent EMC, thermal and cost optimisations. The module is square, with a height of 2.7mm, and requires a single 3.3v supply. A full industrial operating temperature range of -40C to +85C is supported.
The QS93 module’s i.MX935 processor provides a dual 1.7GHz ARM Cortex-A55 core as well as a separate ARM Cortex-M33 running at 250MHz. There 1GB of of LPDDR4 RAM, 4GB eMMC Flash, and a wide range of interfaces including dual USB and dual Ethernet. The i.MX935 also includes an Arm® Ethos™ U-65 microNPU which affords energy-efficient implementation of machine learning (ML) tasks.
As well as energy-efficient operation, the i.MX93 processor offers powerful multimedia capability, with MIPI-CSI camera, a 2D GPU and LVDS display support. Optimal security features are provided by NXP’s Edgelock Secure Enclave.
QS93 comes with a dedicated development system, equipped with Linux BSP.
Development kits are now in stock – simply follow the “Buy Online” link below.
Download Datasheet and Pinout| Resource | QS93 | Detail |
|---|---|---|
| Processor | NXP i.MX935 | |
| CPU | 2x ARM Cortex-A55 | |
| Processor Clock Max (MHz) | 1700 | |
| Embedded Microcontroller | ARM Cortex-M33 | 250MHz clock |
| RAM (MB) | 1024 | x16 LPDDR4 |
| Persistent Storage | 4GB | industrial temp eMMC |
| UART (RS232) | 3 | up to 5 via pin-sharing |
| GB Ethernet | 2 | |
| I2C Interface | 2 | up to 7 via pin-sharing |
| LCD Controller | 1 | via LVDS, 720p60 |
| Camera | 1 | MIPI-CSI 2-Lane |
| Audio | 1 | SAI |
| SD card/SDIO (4-bit) | 1 | 4-wire, SD Card receptacle on baseboard |
| USB | 2 | 2.0 |
| SPI | 2 | up to 4 via pin-sharing |
| CAN | 2 | |
| PWM | 6 | |
| GPIO | up to 60 | |
| Temperature Range | -40C to +85C | |
| Dimensions | 27mm x 27mm | depth 2.3mm |
| Power Consumption | <1W | |
| QNX | 8.0 | QS93 BSP now available |
| Linux | y | Yocto, Debian |

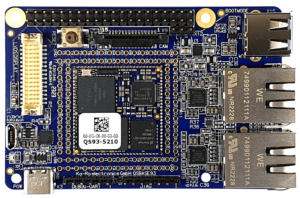

In order to provide developer access to the module’s dual Ethernet ports and LVDS display output, a special development kit – the QSBASE93 – is available for QS93. QSBASE93 features:
- Dual 10/100 Ethernet
- USB
- LVDS display connector
- MIPI CSI camera connector
- USB type-C connector for client/power
- Expansion connector – RasPi power/I2C/SPI/UART compatible + CAN, SDIO
For production purposes, you will require a custom baseboard for the solder-down version of your module, and we are happy to offer baseboard design and manufacture as a service.
The QS93 module is available to order now. The following configuration is available:
QS93-5120 (QS93/52C/1GS/4GF/I)
You can order the QSBASE93 kit from UK stock via our online shop, using the “Buy Online” link to the right, and it should be with you in a couple of days. We look forward to providing you with knowledgeable, professional support to create your product. If you have questions, please don’t hesitate to contact us by calling Direct Insight on +44 1295 768800 9am to 5.30pm UK time, emailing info at directinsight.co.uk, or by using the “Contact Us” form below.
Contact our experienced team with your detailed questions – we’ll be happy to help.
You can quickly access volume pricing information using the following link: Get Quote
Development kits and sample/spare modules are available from stock
QS93 is not typically used with QSBASE4 because of the different (LVDS) display and dual Ethernet
QSBASE93 development kit recommended for QS93
